Hot Selling High Quality Cube Sugar Production Line(100 kg/h)

  • Moq:1 /Sets
  • Brand:LONGER MACHINERY
  • Certification: CE
  • Supply Ability: 10 Set/Per Month
  • Pay Method: West Union L/C T/T Cash
  • Warranty Time: 12 Months
  • Loading Port: Shanghai/Qingdao Port
  • Country Of Origin: China

Features

Introduction:
This sugar cube machine is mainly applied in the briquetting of sugar with cube shapes, the sugar has different specifications like 16*16*13mm, 6*16*15mm, 18*18*12 and so on, besides the sugar making machine mold can be customized according to customer special requirements. The cube sugar machine that can achieve automatic rotation, automatic frequency control and continuous briquetting, continuous work, high efficiency, save manpower material resources.

The sugar processing line including sugar grinding machine, mixed spiral feeding machine, sugar making machine, tablet linkage conveyor, drying tunnel, cooling machine and semi-automatic sugar carton packing machine. All the machine is made of high quality stainless steel, conforms to food standards and long service life.

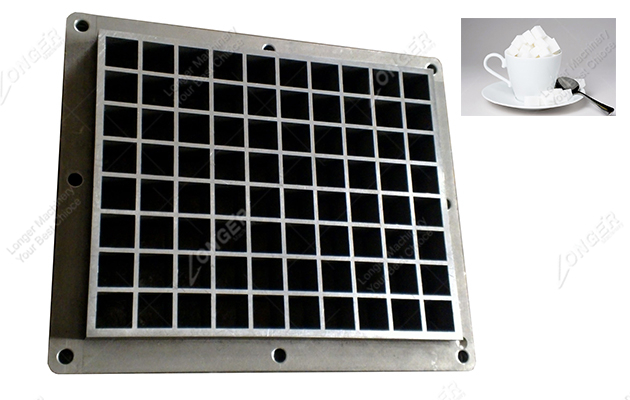

The raw material of the sugar is powdered sugar, most of them needs to grinding certain fineness into the sugar grinding machine. The sugar forming machine can making many different size and shape cube sugar by change molds (the mold can be customized according to customer demand). The sugar can be packing into carton or bags, we have various sugar cube packing machine for your choose.

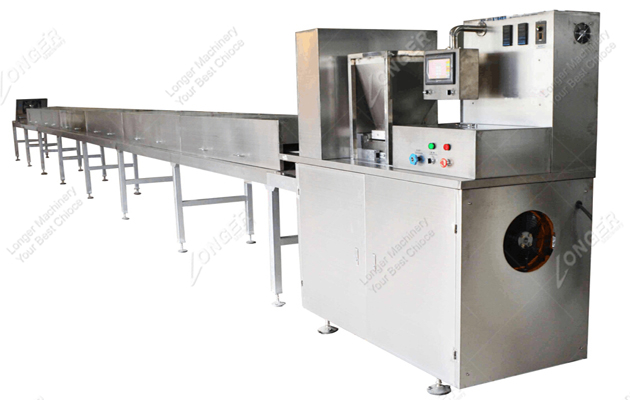

sugar cube production line
Advantages:
1.Reliable performance, simple construction stable operation, long service life.
2.By changing the molds, this plant is able to produce various shape of high quality sugar cube such as square sugar, heart-shaped sugar and special shape sugar cube.
3.We have hydraulic type and pneumatic type cube sugar making machine for your choose.
4.High automatic, stand-alone machine can be controlled separately, simple operation and easy maintenance
5.The plant is a new generation product developed exclusively in China based on the advanced structure of existing plants from domestic market and abroad.
6.This machine is the most advanced sugar cube equipment, with reasonable structure, smooth operation, long service life, clean rate higher characteristic.
We have approved by CE, ISO and SGS. They all are proves of our high quality.

Technical Data

No. Equipment Name Detailed Specifications

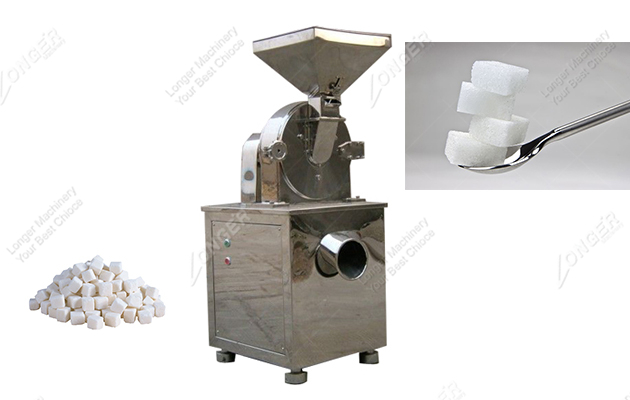

1 Sugar Grinder Machine LG-100
Capacity:50-100kg/h
Feed size: <5mm
Grinding fineness:12-150mesh
Motor power:2.2kw
Dimension:780*750*1500mm
Weight:250kg

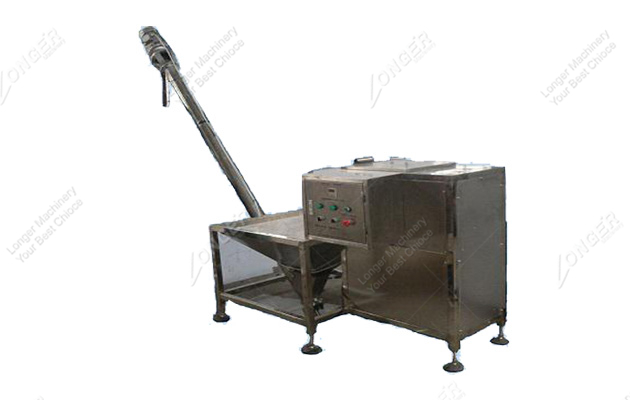

2 Mixed Spiral Feeding Machine Model: LG-SG
Function: mixing and automatic feeding
Motor power: 3.85kw
Discharge port from the ground: 1700mm
Dimension: 500*500*1650mm
Weight: 140kg

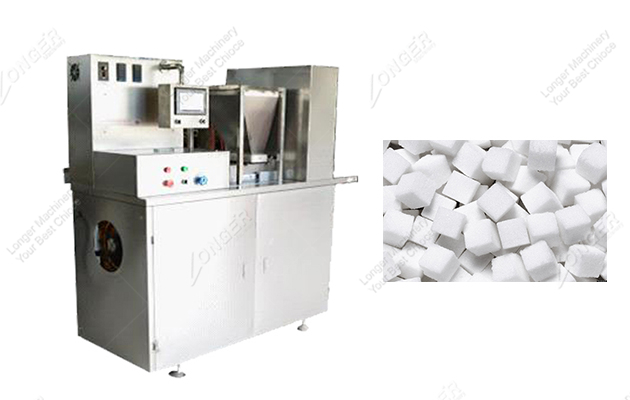

3 Sugar Making Machine Model: LGF-60
Capacity:60-120kg/h
Power:3kw,380V/50Hz
Dimension:1200*600*1400mm
Weight:800kg
PLC control, man-machine interface.

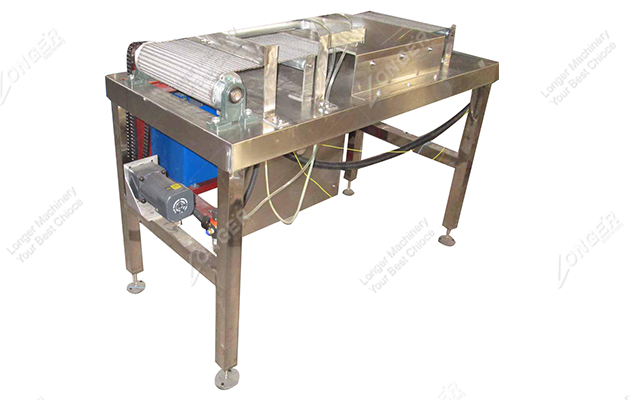

4 Tablet Linkage Conveyor Model: LGS-2
Function: Linkage & Transmission
Efficiency: 0-10m3/min
Air pressure: 0.3-0.5Mpa
Dimension: 1300*700*1000mm
Weight: 60kg
5 Infrared Drying Tunnel Model: LGH-3
Efficiency: 0-10m3/min
Power: AC380V50Hz 2KW*4
Dimension: 1900*700*1150mm
Weight: 90kg*4
6 Cooler Machine Model: LGQ-1
Function: Cooling
Efficiency: 0-10m3/min
Dimension: 1900*700*700mm
Weight: 60kg
7 Semi-automatic Sugar Packing Machine Model: LG-250
Feature: infinite speed variation
Rated voltage: 220V/380V 50-60Hz
Power: 2.2kw
Maximum pressure: 36(43)Kpa
Maximum degree of vacuum: 26(31)KPA
Table: customized
Chuck handle: 2 pcs
Dimension: 650*600*950mm
Weight: 75kg
